THB-A05-30D VDI30-MT-ER32 軸向動(dòng)力刀座

產(chǎn)品介紹

m_prod2014042500089

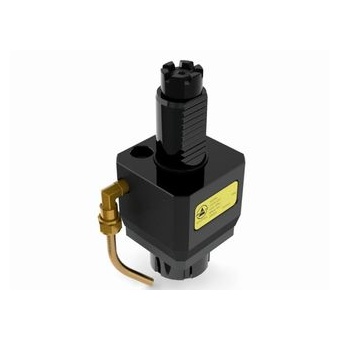

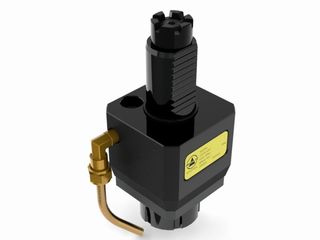

◎ VDI30-MT-ER32 Axial Driven Tool Holder◎ Tool Holder is produced in accordance with DIN 69880.◎ Driven Coupling is according to SPUR MT TOEM.◎ ER Collet is according to DIN6499.◎ For left hand and right hand turret.

THB-A05-30D VDI30-MT-ER32 軸向動(dòng)力刀座



下載 DWG STP PDF
  • 描述
  • IM_EXTRA_TAB_ADD1
  • 規(guī)格


◎ VDI30-MT-ER32 Axial Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.

◎ R.P.M.：Max. 6,000 RPM

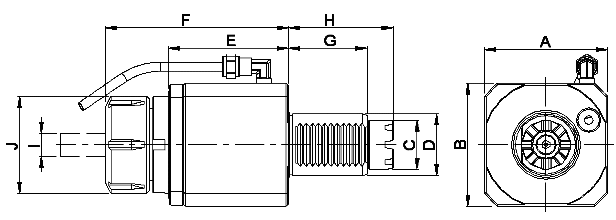

Model No. A B C D E F G H I J N.W. (KG)
THB-A05-30D 64 64 24 30 64 98 45 59 ER32(3~20) 50 2.3
